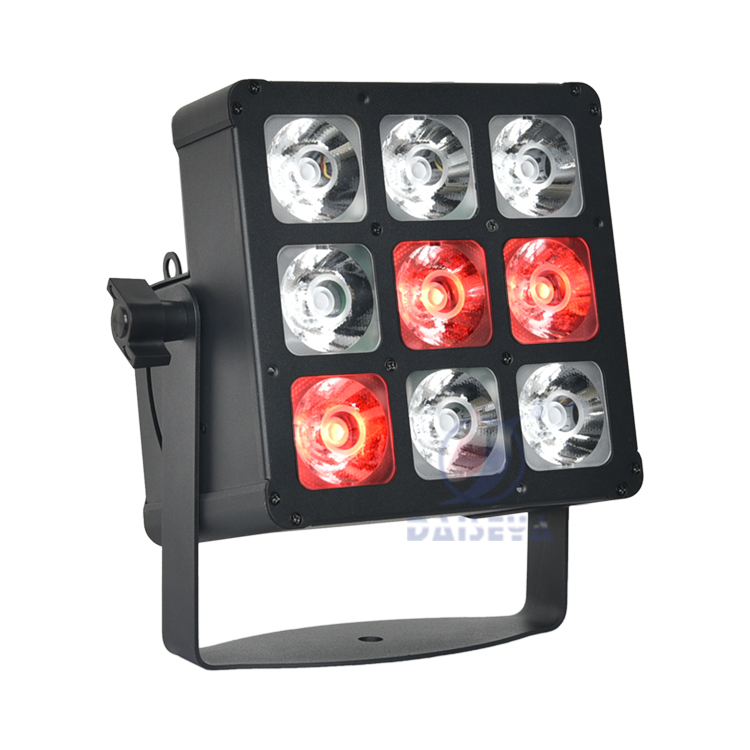

WS2009/WQ2009-MATRIX

130W/165W | 9PCS | 6-in-1/4-in-1 | IP20 | DMX512 | RDM
  • Specifications
  • Video
     Model  WS2009 RGBALC
     WQ2009-RGB-Matrix
     Input voltage
     AC 100V-240V/50-60Hz
     AC 100V-240V/50-60Hz
     Power consumption
     130W
     165W
     Lamp Type
     20W LED 6-in-1 R, G, B, A, L(Lemon), C(Cyan)(9PCS)
     20W LED 4-in-1 R, G, B, L(9PCS)
     Life span
     50000~100000hours
     50000~100000hours
     PWM Dimmer
     1200HZ/2400HZ/4000HZ/12000HZ/16000HZ/20000HZ  1200HZ/2400HZ/4000HZ/12000HZ/16000HZ/20000HZ
     Control Signal
     DMX512/RDM
     DMX512/RDM
     Angle
     15°, 25°, 45° Optional
     6°
     Control mode
     stand alone/ Master/Slaver/Sound
     stand alone/ Master/Slaver/Sound
     Channel
     12CH/ 8CH/ 6CH
     42CH/ 36CH/ 27CH/ 18CH/ 10CH/ 5CH/ 4CH/ 3CH
     Function Effect
     dimmer, strobe, gradual change, rainbow, self program     running
     dimmer, strobe, gradual change, rainbow, self program    running
     Built-in temperature control measurement function, when LED work overheated, intelligent reduce LED output power, current power output
     and temperature can be viewed.
     Cooling mode
     Auto Fan (quiet)
     Natural Convection+ Auto fans cooling(quiet)
     Anti-electricity intension
     1.5KV
     1.5KV
     Insulation Resistance
     >2MΩ
     >2MΩ
     Protection
     IP20
     IP20
     Size
     179*179*112.65mm  179*179*112.65mm
     Net weight
     3.2 Kg
     3.3 Kg
