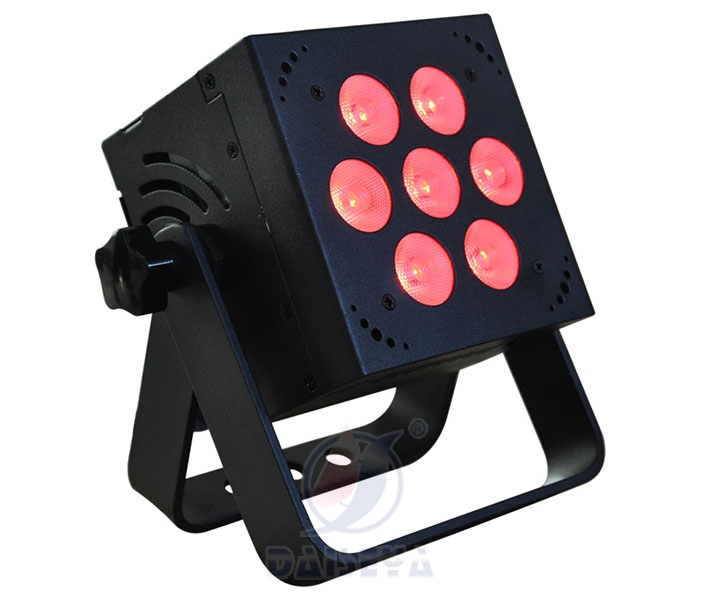

WQ807/WS1207

50W | 7PCS | IP20 | 4-IN-1 | Auto run | DMX512 | RDM | Sound | Flicker free
  • Specifications
  • Video
     Model  WQ807
     WS1207
     Input voltage
     AC 100V-240V/50-60Hz(Universal Voltage)
     AC 100V-240V/50-60Hz(Universal Voltage)
     Power consumption
     50W
     78W
     Lamp Type
     7*8W R, G, B, W. 4-in-1 LED
     12W LED 6-in-1 R, G, B, A, W, UV(7PCS)
     Life span
     50000~100000hours
     50000~100000hours
     PWM Dimmer
     >400HZ(16666 grades)
     1200HZ/2400HZ/4000HZ/12000HZ/16000HZ/

     20000HZ

     Control Signal
     DMX512
     DMX512/RDM/Sound
     Angle
     25°
     15°,25°,25°
     Control mode
     stand alone/ Master/ Slaver/ Sound Activated
     stand alone/ Master/ Slaver/ Sound Activated
     Channel
     9CH、8CH、5CH、4CH、3 CH
     12CH、8CH、6CH
     Function Effect
     dimmer, strobe, gradual change, rainbow, self program     running
     dimmer, strobe, gradual change, rainbow, self program    running
     Built-in temperature control system, overheat protection
     Cooling mode
     Fan Cooling
     Natural Convection+Auto Fan Cooling(quiet)
     Anti-electricity intension
     1.5KV
     1.5KV
     Insulation Resistance
     >2MΩ
     >2MΩ
     Protection
     IP20
     IP20
     Size
     193*123*179mm
     123.5*123.5*110mm
     Net weight
     2Kg
     1.87Kg
